HGLRC Rekon 4 FR Freestyle Frame Kit 4 Inches Frame

ekon4 FR Freestyle Frame Kit 4 Inches Frame for FPV Racing Drone

Feature:

*Support(20×20-25.5×25.5mm)mounting holes;
*Supports AIO/stack installating at the same time, ultra-light and lasts super long in flying.

Brand Name:Rekon
Model:Rekon4 FR Freestyle Frame
Material:3K Carbon Fiber
Type:4″ frame
Wheelbase:180mm
size:180*140mm
Top plate thickness:1.5mm
Bottom plate thickness:1.5mm
Middle plate thickness:1.5mm
Arm thickness:4mm
Space of top and middle plate:20mm
Motor mounting hole:∅9-12
Installation holes:20x20mm/25.5×25.5 mm
Support camera:19*19mm
Weight:52.2g

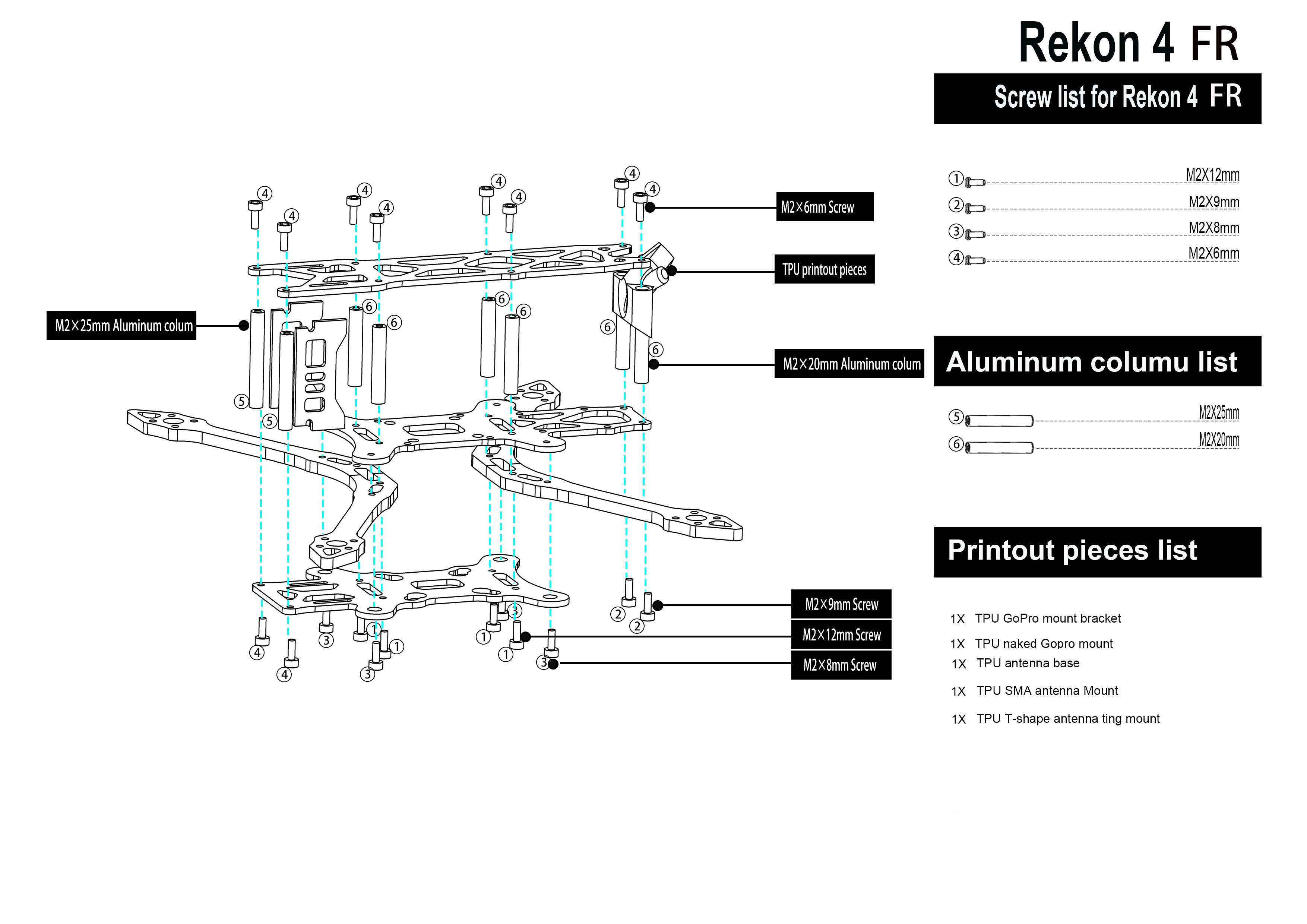

Package Includes:
1x 1.5mm top plate
1x 1.5mm bottom plate
1x 1.5mm middle plate
2x 1.5mm camera side plate
4x 4mm Machine arm
2x M2*25mm Black mesh aluminum columns
6x M2*20mm Black mesh aluminum columns
5x Round head screws M3*20
4x Head cap screws M2*20
4x Cup head screws M2*12
4x Cup head screws M2*9
12x Round head screws M2*6
2x Round head screw M2*4
5x M3 Self-tightening nuts
4x M2 Self-tightening nuts
8x M3*6.6 shock-absorption balls
4x M2*4 shock-absorption Standoffs
2x Battery straps 15x200mm
1x Battery Anti-slip pad
1x TPU SMA antenna base
1x TPU antenna base
1x TPU GoPro fixing bracket
1x TPU Naked Gopro mount
1x TPU T-shape antenna fixing mount

Recommended Parts:( Not Included )
Flight Controller:Zeus25/ZeusF722 mini
Motor:14XX/16XX/18XX
ESC:25A-40A
Camera:19X19mm
Propeller:4 Inches
