JIYI K3A PRO Flight Controller

JIYI K3A PRO Flight Controller System Standard Version for DIY Special 4/6/8 Axis Agricultural Pesticide Spraying Drone

JIYI K3-A Pro flight control is specially designed for agricultural sprayer drones. It has a variety of modes and exclusive functions for agriculture sprayer drones. It supports manual, semi-autonomous and autonomous flight. It can monitor drug flow in real time and intelligently match the spray volume to achieve precise UAV pesticide spraying . Equipped with professional App ground control station, it is efficient and easy to operate.

Main Features
Diverse Operating Mode for a variety of operating environments
K3-A Pro built-in fixed height mode, GPS – speed mode and other operating modes, easy to operate, flexible switching, free to change operating modes according to different operating environments, to meet the needs of agriculture spraying requirement.

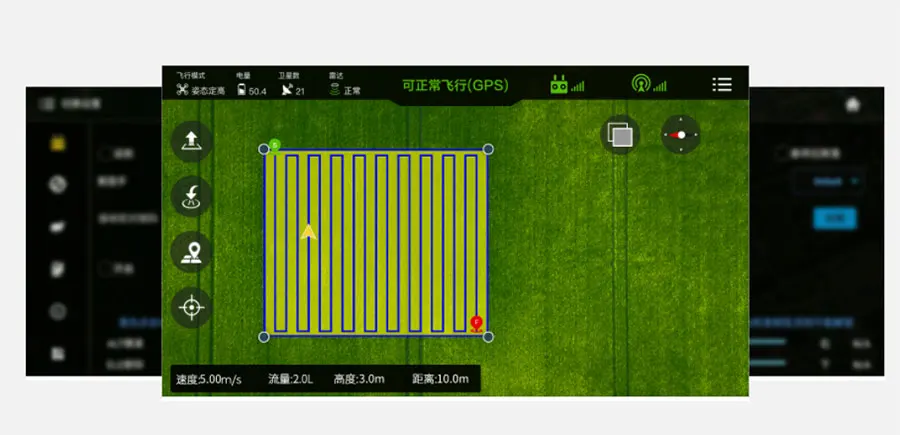

Equipped with exclusive agricultural App ground station, precise and convenient control
Personalized app tailored for agricultural sprayer drones, it can provide arbitrary polygon route for unregulated terrain, autonomous operation and improve work efficiency. It has a route memory function and can calculate the spray area, which helps the operator to grasp the dosage more accurately.

Standard dual GNSS module, more safety of flight
Dual GNSS magnetic compass configuration, to achieve the best positioning control, ensure safe and stable flight.

Specification

Supported Multi Quadrotor(+ type, X type) Hover accuracy Horizon: ±2M
Six Rotor(+type, X type, IY type, YI type Coaxial double paddle ) Vertical: ±0.8M
Eight Rotors (+types, X types, V types)
Supported ESC Type : Below 490Hz PWM ESC Maximum tilt angle : 30 °
Maximum Output Channel : 8 Channels Maximum yaw speed : 150°/s
Recommend remote controller : with SBUS receiver Maximum vertical speed : 6m/s
Supported receiver types : PPM, S-BUS receiver Wind resistance Continuous wind: level 3
Supported accessories : Radar, RTK, Data link, Flow Sensor Module Gust: Level 4

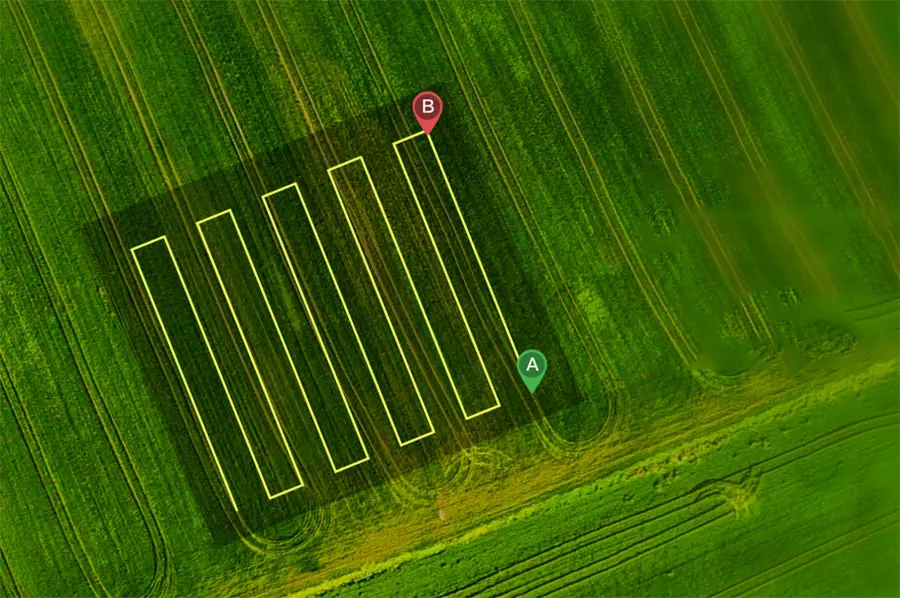

Working Voltage 2-12S Flight mode and function Attitude - stabilization mode, Attitude - fixed height mode, GPS - speed mode, GPS - angle mode, AB point mode, automatic return mode, out of control return mode, low voltage protection, Breakpoint continuous spray function, one button Traverse function, Water pump control function, Terrain following function, Emergency stop function, GPS speed switching function, support for App ground station, support remote control tuning setting by data link.
Power Consumption : Less than 2W
Working temperature: 0-60°
Storage temperature : -40-60°
Seismic pressure : <1G

Hardware Specification:

Weight
Flight controller: 56g
GPS: 45g
LED module: 13g
Power module: 39g

Dimension:

Flight controller: 53.5mm×40.0mm×21.0mm
GPS: 63.0mm(diameter)*15.0mm
Led module:24mm×
Power module: 53.5mm×34.5mm×14.5mm

Package Includes:

Jiyi K3A pro Flight controller box x 1
GPS x 2
PMU x 1
GPS holder x 1
LED x 1
some 3M clue
USB cable x 1
some cables
